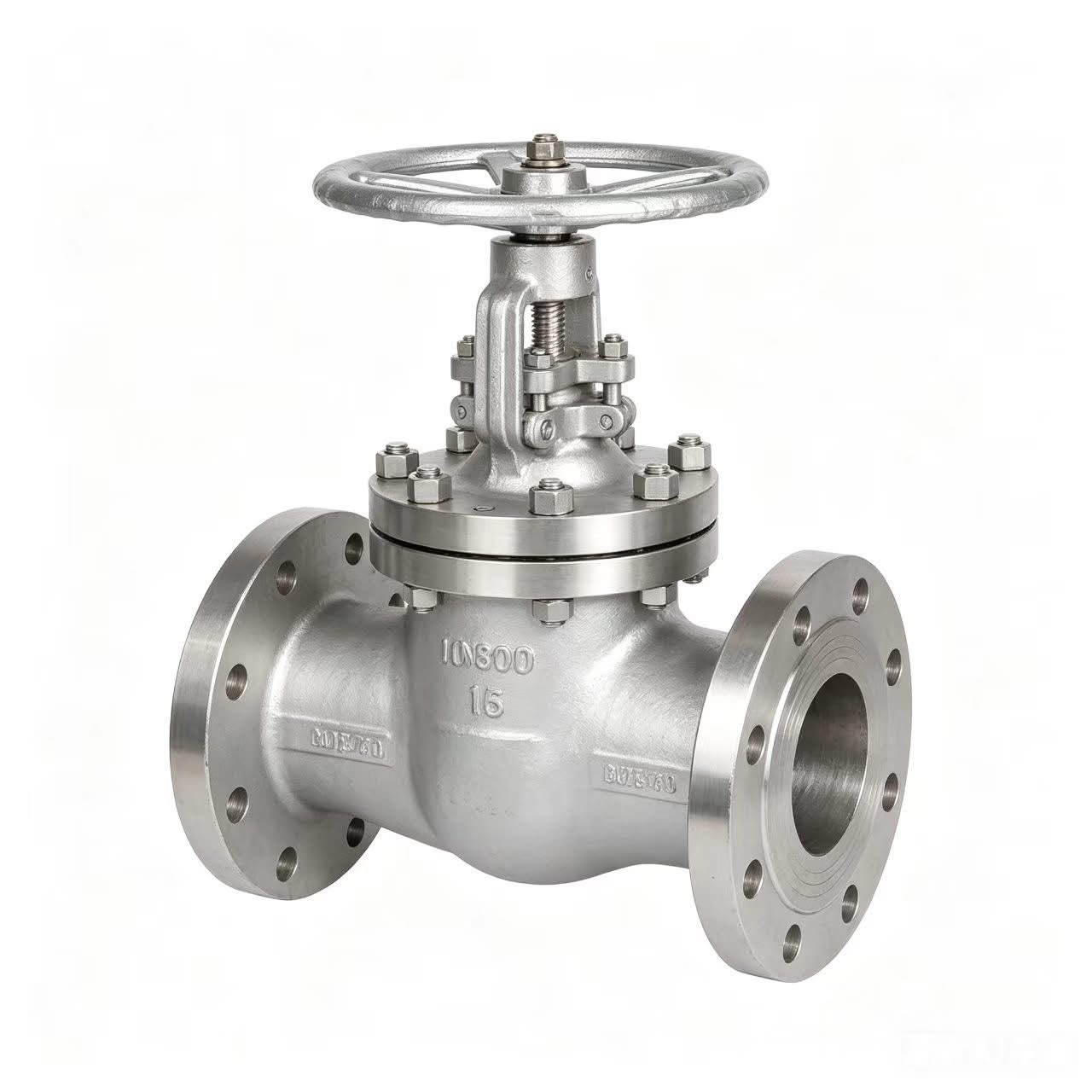

GFI Globe Valves
GFI Globe Valves are engineered for precise flow regulation, throttling and reliable isolation across demanding industrial piping systems. Their controlled flow path and precision-machined seating arrangement provide dependable shut-off and accurate flow control across a wide range of operating conditions.
Available in cast and forged constructions, GFI Globe Valves can be configured with different body materials, trims, pressure classes and end connections to meet the requirements of oil & gas, petrochemical, power generation, chemical processing, steam and general industrial applications.
Key Features
Precise Flow Regulation
Designed to provide controlled throttling and accurate regulation of flow across industrial process lines.
Reliable Shut-Off
Precision-machined seating surfaces provide dependable shut-off performance when the valve is fully closed.
Robust Disc & Seat Design
Carefully engineered disc and seat arrangements support consistent sealing and long service life.
High Pressure Capability
Available in multiple pressure classes for demanding high-pressure and high-temperature process services.
Multiple Body Configurations
Available in straight, Y-pattern and angle configurations for different piping and flow requirements.
Wide Material Selection
Carbon steel, stainless steel and alloy steel options are available with application-specific trim selections.
Available Types
Bolted Bonnet Globe Valve
A proven and widely used configuration offering reliable sealing and convenient access for inspection and maintenance. Suitable for general industrial and process applications.
Pressure Seal Globe Valve
Designed for demanding high-pressure and high-temperature services, where pressure assisted sealing helps provide reliable bonnet sealing performance.
Y-Type Globe Valve
The angled body configuration provides a more streamlined flow path and can reduce pressure loss compared with conventional globe valve configurations.
Angle Globe Valve
Designed for applications where the piping direction changes through the valve, combining flow regulation with a convenient 90-degree piping arrangement.
Technical Specifications
| General Specifications | |
|---|---|
| Valve Type | Globe Valve |
| Design Standards | BS 1873 / API 623 / ASME B16.34 |
| Size Range | 15 mm to 600 mm (½" to 24") |
| Pressure Classes | Class 150 to Class 2500 |
| Construction | Cast / Forged |
| Body Materials | Carbon Steel / Stainless Steel / Alloy Steel |
| Disc Configuration | Plug / Parabolic / Conventional Disc |
| Bonnet Type | Bolted Bonnet / Pressure Seal |
| End Connections | Flanged / Butt Weld / Socket Weld / Threaded |
| Flange Facing | RF / RTJ |
| Trim Options | SS304 / SS316 / 13% Cr / Stellite Faced |
| Operating Temperature | Application and material grade dependent |
| Testing Standard | API 598 / ISO 5208 |
| Design Standard | ASME B16.34 |
| Operation | Handwheel / Gear Operated / Actuated* |
*Actuation options are available depending on valve size, pressure class and application requirements.
Applicable Industries
Manufacturing Standards
Globe Valve Applications
GFI Globe Valves are used where controlled flow regulation, throttling and dependable isolation are required. Their operating characteristics make them suitable for applications where flow needs to be adjusted rather than simply switched fully on or fully off.
They are commonly used in steam lines, process pipelines, cooling and heating systems, chemical processing units, power generation facilities, refineries and other industrial systems where accurate flow control is an important operating requirement.
Looking for a Customised Globe Valve Solution?
Share your required size, pressure class, material, trim, end connection and operating conditions with GFI. Our engineering team can help you select a suitable Globe Valve configuration for your application.
